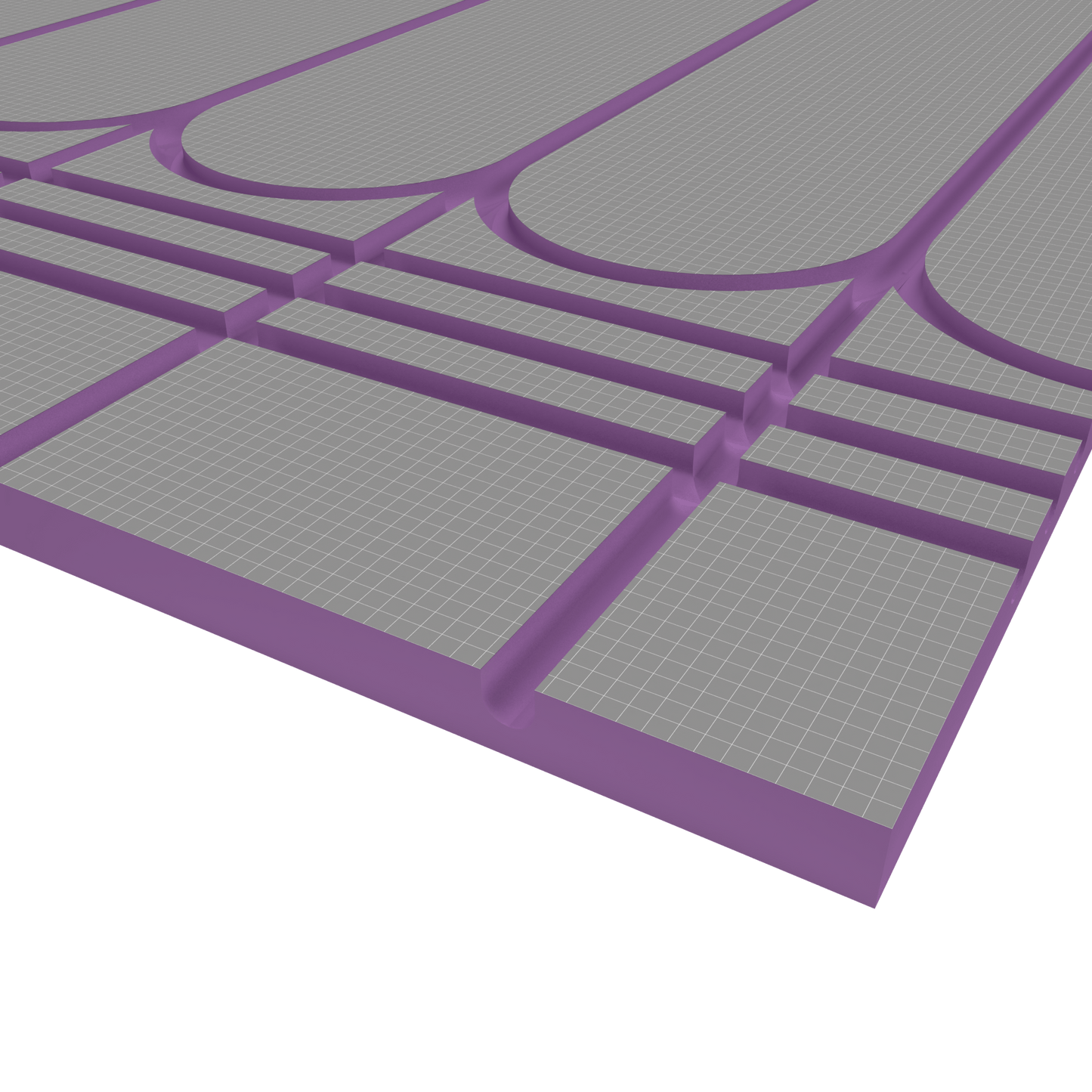

12.5mm Tekwarm Ultra Low Profile UFH Board | 1200mm x 600mm | 150mm Centres for 10mm Pipe
12.5mm Tekwarm Ultra Low Profile UFH Board | 1200mm x 600mm | 150mm Centres for 10mm Pipe
SKU:BM008571
✔ Pre-grooved for 10mm underfloor heating pipes
✔ Grooved at 150mm centres
✔ Low profile ideal for when space is limited
Regular price
£20.11
inc. vat
Regular price
Sale price
£20.11
Unit price
per
inc. vat
£16.76ex. vat
Shipping calculated at checkout.
Standard delivery by
Couldn't load pickup availability
Save 5% off selected Tekwarm products!
*min spend £500.00 ex.vat. Applied at checkout. Cannot be used with any other offers/discounts
Free Expert UFH Quote
• UK technical team
• 24–48 hr turnaround
• No obligation
• 24–48 hr turnaround
• No obligation
12.5mm Tekwarm Ultra Low Profile UFH Board | 1200mm x 600mm | 150mm Centres for 10mm Pipe
Overview
The 12.5mm Tekwarm Ultra Low Profile UFH Board with 150mm centre spacing provides an efficient underfloor heating system with optimal heat distribution. Designed for low-profile installations, this board is grooved to fit 10mm diameter pipes, and is ideal for both new builds and retrofit applications. It is suitable for installation on both timber and concrete sub-floors, offering flexibility for various projects.
Key Features:
- Thickness: 12.5mm, perfect for low-profile heating solutions.
- Grooved for 10mm Pipes: Allows for easy and efficient pipe placement with radius returns for better heat distribution.
- Compressive Strength: 200 kPa XPS insulation ensures long-lasting durability and energy efficiency.
- Pipe Spacing: 150mm, designed to provide optimal heat distribution for most underfloor heating systems.
- Suitable for Timber and Concrete Sub-floors: Can be installed directly on both surfaces using appropriate fixings or adhesives.
Key Benefits:
- Fast Installation: The grooved design speeds up the installation process, making it a time-efficient solution.
- Low Profile: Ideal for projects where space is limited and a low-profile system is required.
- Energy Efficient: Helps retain and distribute heat evenly across the floor, improving the energy efficiency of the heating system.
Alternative Products:
Looking for a different configuration? Check out the following option:
Product Data Sheet:
Tekwarm Ultra Low Profile UFH Board Data Sheet
Recommended Overlay Board:
Quick Technical Overview
- Board size 1200 × 600 × 12 mm
- Pipe compatibility 10 mm @ 150 mm centres
- Low profile system Yes
Technical Specifications
Dimensions
| SKU | BM008571 |
|---|---|
| Brand | Tekwarm |
| Range | Ultra Low Profile UFH Board |
| Length | 1200 mm |
| Width | 600 mm |
| Thickness | 12 mm |
UFH compatibility
| Pipe diameter | 10 mm |
|---|---|
| Pipe centres | 150 mm |
| Low profile system | Yes |
| Groove pattern | Pre-routed Linear routed channels with radius return grooves |
Coverage & packs
| Coverage per board | 0.72 m² |
|---|
Material & performance
| Core material | Extruded Polystyrene (XPS) (200 kPa) |
|---|---|
| Compressive strength | 200.0 kPa |
Installation requirements
| Fixing notes | Adhesive/mechanical depending on subfloor (typical for UFH boards) |
|---|
Suitability
| Suitable subfloors | Timber, concrete |
|---|
Data Sheet
| Tekwarm Ultra Low Profile UFH Boards |
