Tekwarm

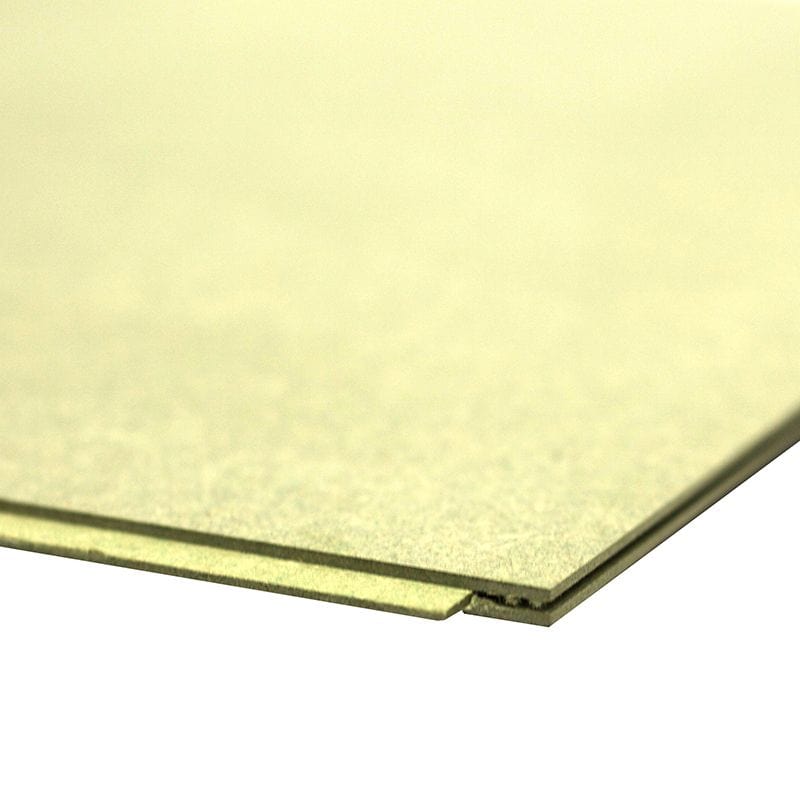

Tekwarm UFH Moisture Resistant Overlay Board | 1200mm x 600mm x 9mm
Tekwarm UFH Moisture Resistant Overlay Board | 1200mm x 600mm x 9mm
SKU:BM01763
✔ Ideal for most floor finishes
✔ Moisture resistant
✔ Tongue & grooved edges for easy installation
£12.90
inc. vat
inc. vat
£10.75ex. vat
Couldn't load pickup availability
Save 5% off selected Tekwarm products!
*min spend £500.00 ex.vat. Applied at checkout. Cannot be used with any other offers/discounts
• 24–48 hr turnaround
• No obligation
Tekwarm UFH Moisture Resistant Overlay Board | 1200mm x 600mm x 9mm
Tekwarm Overlay MR-MDF Board, the perfect solution for enhancing the performance of your underfloor heating system. This overlay board is specially designed to be used with Tekwarm Chipboard UFH panels, providing a smooth and reliable surface for various flooring finishes, including carpets, vinyls, laminates, and solid wood block flooring.
Key Features
High-Quality Construction:
Tekwarm Overlay MR-MDF boards are manufactured from Tongue & Groove moisture-resistant MDF, identified by its green tint core appearance. This ensures excellent durability and performance in interior humid conditions.
Dimensions:
Each board measures 1200mm x 600mm x 9mm, featuring tongue and grooves on all edges for easy and seamless fitting.
Compliant and Reliable:
Tekwarm Overlay MR-MDF boards are manufactured in accordance with EN 622-5, guaranteeing the highest standards of quality and safety.
Ideal for Tiling:
When tiling over the overlay board, simply follow the tile manufacturer's instructions, utilizing an S1 Tile adhesive and a decoupling membrane in conjunction with the board for optimal results.
Easy Installation:
The boards should be fitted in a brick bond pattern at a 90-degree orientation to the direction of the UFH boards, with glued T&G joints. Mechanical fixing should be done with suitable screws at maximum 300mm centres.
Please Note:
While we provide accurate information in this product description, different circumstances may require adjustments in the application. We cannot be held responsible for any loss or damage due to incorrect use or variations in working conditions beyond our control. Users are solely responsible for the consequences of their product use.
Quick Technical Overview
- Board size 1200 × 600 × 9 mm
- System type Moisture-resistant overlay
Technical Specifications
Dimensions
| SKU | BM01763 |
|---|---|
| Brand | Tekwarm |
| Range | UFH Moisture Resistant Overlay Board |
| MPN | PR008038 |
| Length | 1200 mm |
| Width | 600 mm |
| Thickness | 9 mm |
Coverage & packs
| Coverage per board | 0.72 m² |
|---|
Material & performance
| Core material | Moisture-resistant MDF (green core) |
|---|---|
| Moisture rating / grade | Moisture-resistant MDF |
Installation requirements
| Overlay layer notes | Used as overlay over UFH boards before final floor finishes |
|---|---|
| Fixing method | Mechanical fixing with screws at max 300 mm centres |
| Fixing type / size | Suitable screws for MDF (max 300 mm centres) |
| Fixing notes | Fit in brick bond pattern at 90° to UFH boards; glue T&G joints and screw. |
Suitability
| Suitable subfloors | \tInstalled over UFH panels |
|---|---|
| Suitable floor finishes | Carpet, vinyl, laminate, solid wood block, suitable for tiles with membrane + S1 adhesive |
Frequently asked questions
What underfloor heating panels should this overlay board be used with?
What are the dimensions and thickness of this overlay board?
What is this overlay board used for in an underfloor heating installation?
Does this overlay board add structural support?
What types of floor finishes can be installed over this overlay board?
How should the board be cut or trimmed on site?
When should I use this overlay board instead of plywood or other alternatives?
Data Sheet
| Tekwarm 9mm Overlay Boards |
