22mm Tekwarm Foiled Routed OSB 1200mm x 600mm | 150mm Centres for 16mm pipe

Yes. This panel is pre-grooved for 16 mm underfloor heating pipe at 150 mm centres, making it suitable for most water-based UFH systems that use that pipe size.

Each board measures1200 mm × 600 mm × 22 mm, covering about0.72 m²per panel. The routed channels are set at 150 mm centres for consistent pipe spacing.

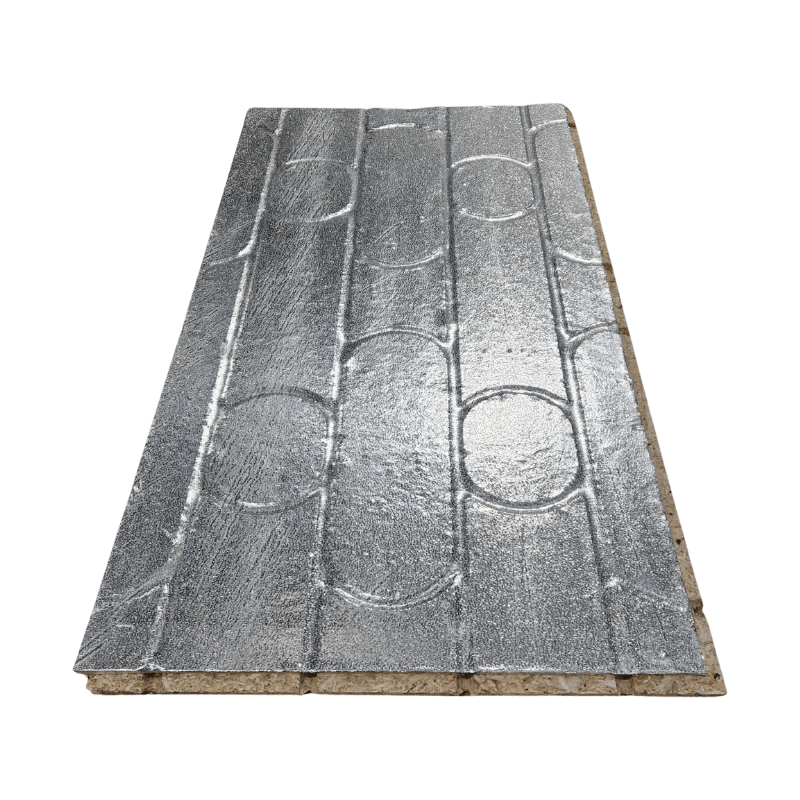

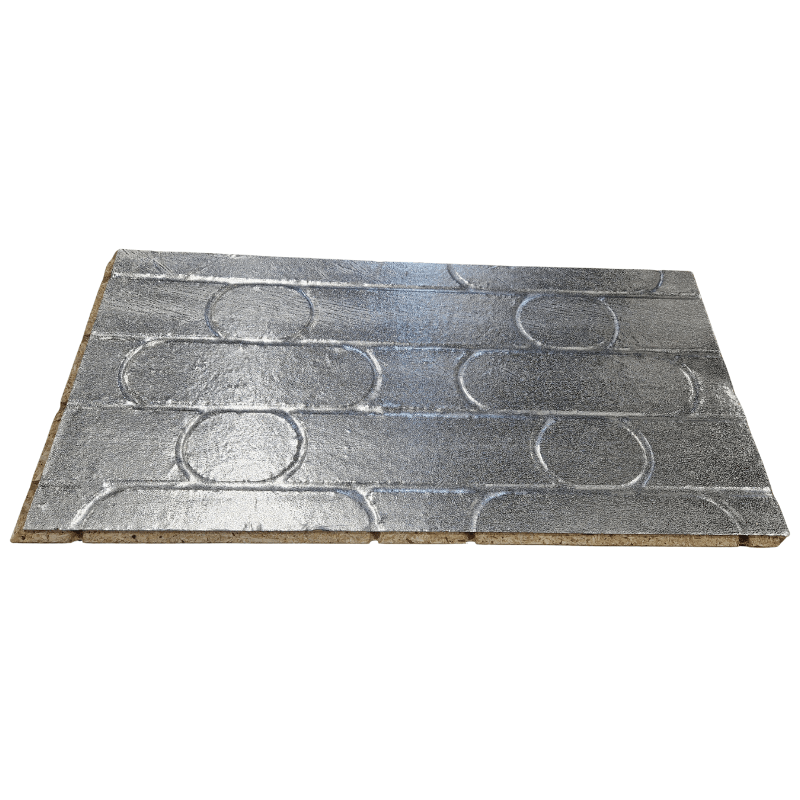

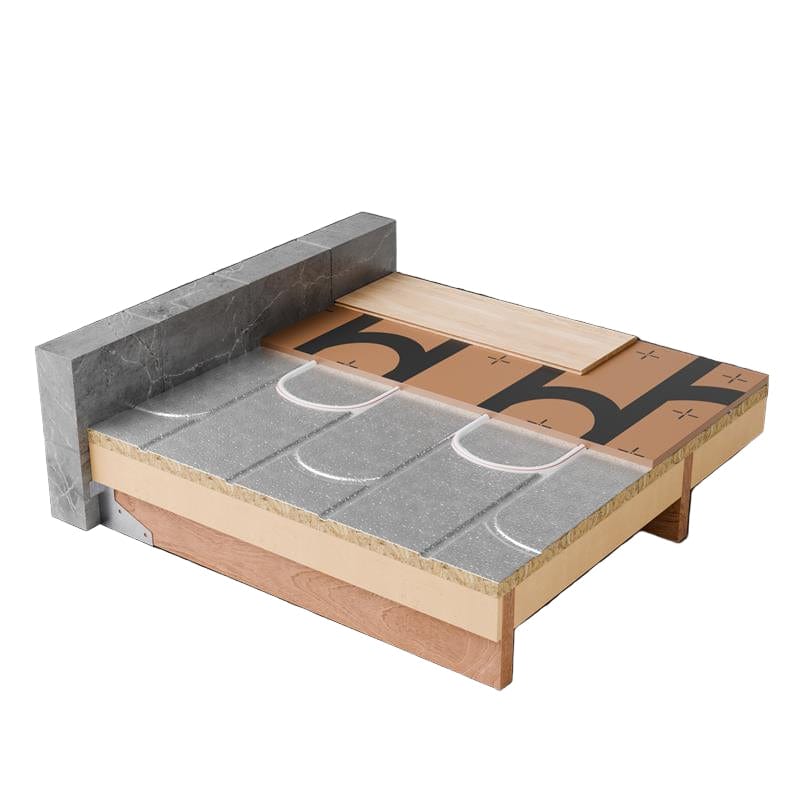

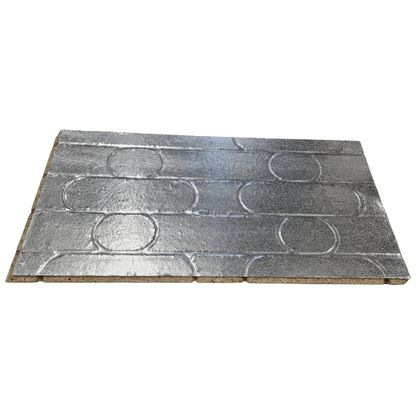

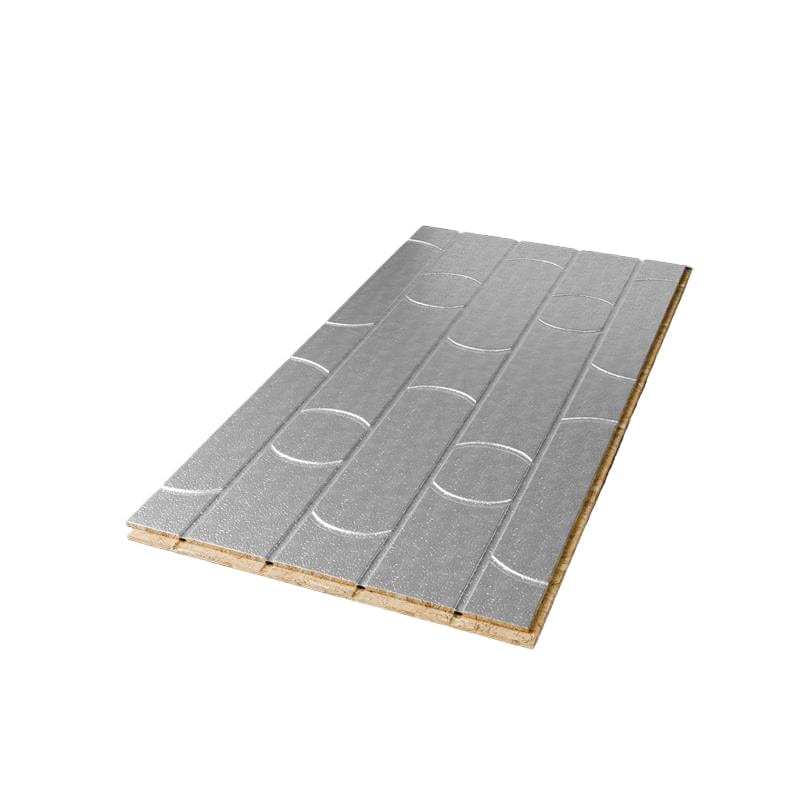

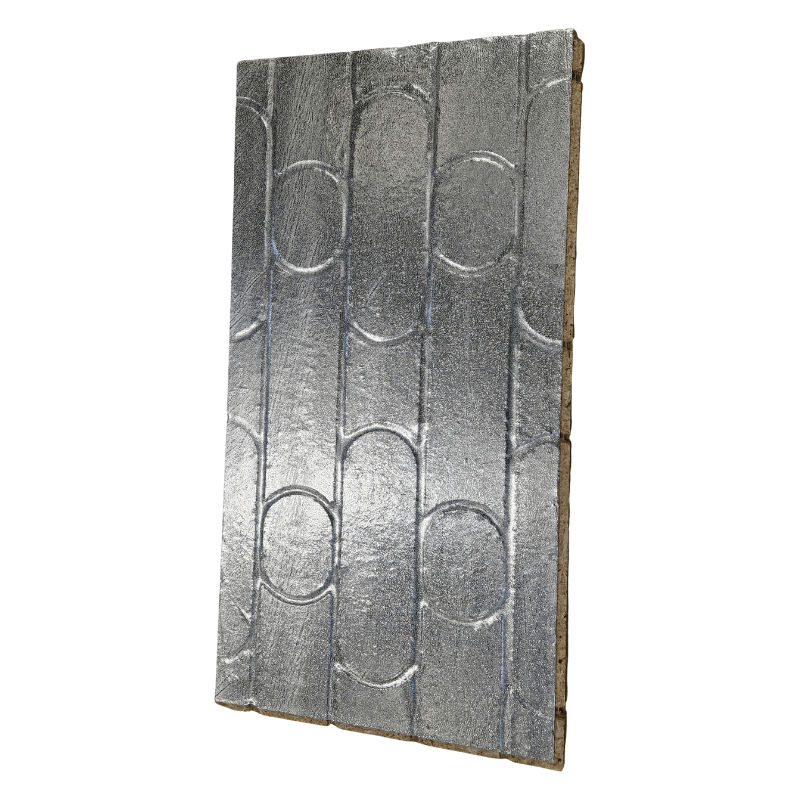

It’s a foiled, pre-routed OSB underfloor heating panel. You lay the board across the floor, press the16 mm pipe into the grooves, and then typically cover with an overlay before the final floor finish.

Yes. Although the foil helps reflect heat, the routed board is not normally used as the finished structural deck. A suitable overlay layer generally provides a flat, stable surface for final floor finishes.

Yes — the boards can be trimmed on site to fit around room layouts and services. Take care not to crush the routed channels or damage the foil surface when cutting.

They’re commonly used indomestic underfloor heating installationswhere foiled panels help reflect heat upwards and maintain even heat distribution across the floor.

The foiled version is chosen when enhanced heat reflection and thermal efficiency are priorities. The plain routed board is fine for standard installations where additional reflection isn’t needed.
