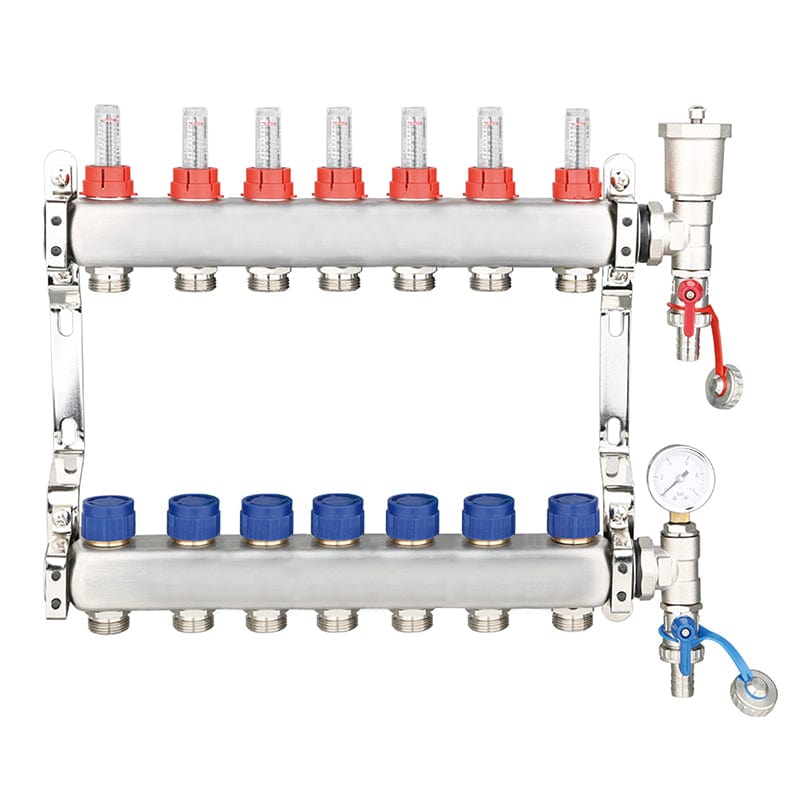

7 Port UFH Manifold Inc Pressure Gauge & Auto Air Vent | ZL-117507

7 Port UFH Manifold Inc Pressure Gauge & Auto Air Vent | ZL-117507

Stainless steel manifold for 2 up to 12 heating circuits for distribution, shut off and balancing of the heating/cooling water flow of radiant panel heating/cooling systems in compliance with BSEN 1264-4.

The flow rate for each heating circuit can be continuously adjusted via a regulating shut-off valve integrated in the return circuit.

• 5 valve connection for all common actuators (optional accessory).
• Precise adjustment even at high flow rates.
• Premium quality O-ring valve gaskets (EPDM) ensure permanent ease of operation and high durability.
• 1" MT flat-sealing connections to heat generator, connection to heating circuits via ¾" eurocone for clamp ring screw connections.
• Includes an end set with 3/4” swivel connection for shut-off, filling, draining, and flushing.
• Ready-mounted on wall bracket, low-noise pipe clamps in accordance with DIN 4109.
• A wide range of supplementary systems, such as pump groups, hydraulic control units for manifolds, heat interface units and many more.
