Devi (Danfoss)

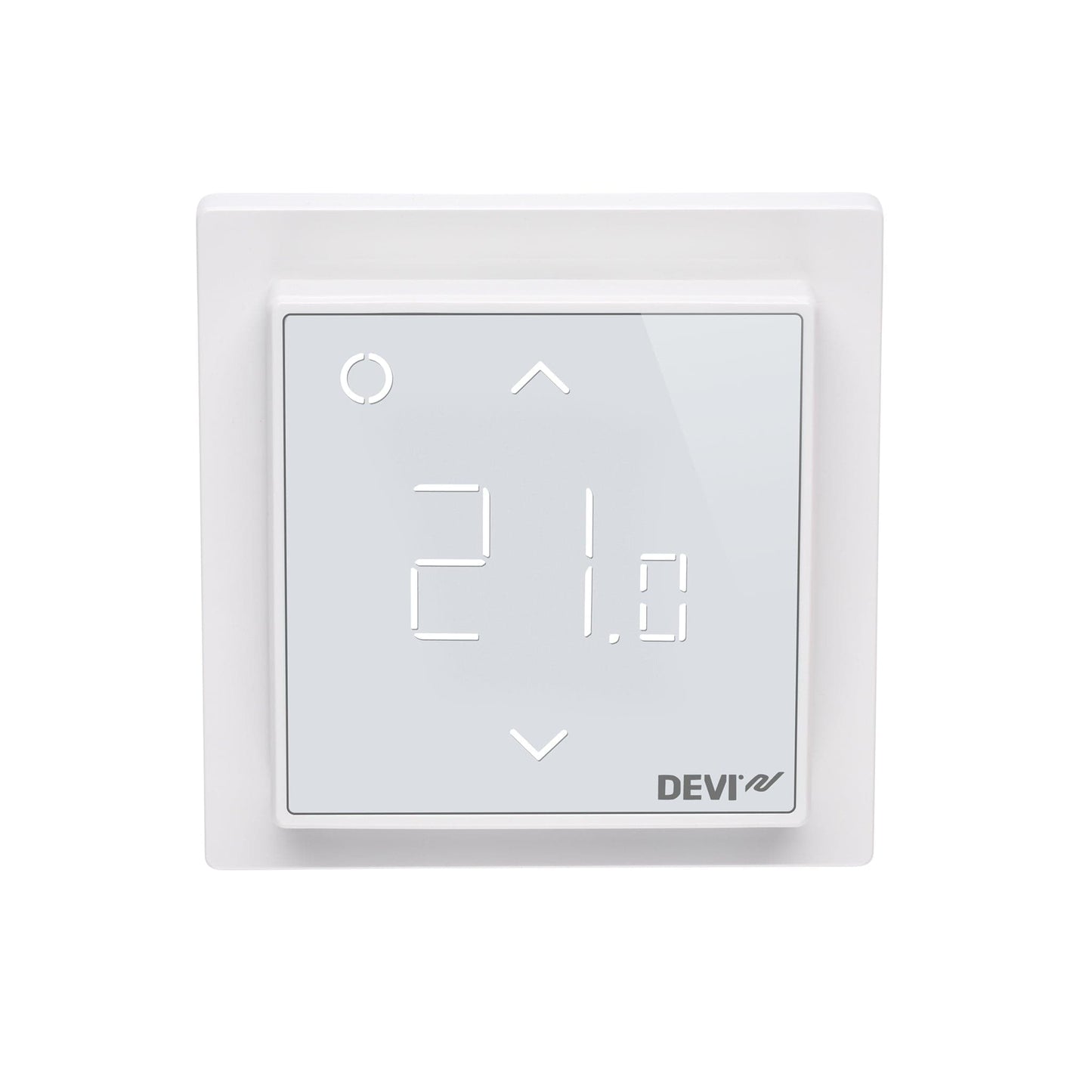

Danfoss DEVIreg™ Smart Polar White Thermostat
Danfoss DEVIreg™ Smart Polar White Thermostat
SKU:BM01560
£118.68
inc. vat
£98.90
ex. vat
inc. vat
£98.90ex. vat
Couldn't load pickup availability
• 24–48 hr turnaround
• No obligation
Danfoss DEVIreg™ Smart Polar White Thermostat
DEVIreg™ Smart
The DEVIreg™ Smart is an intuitive programmable timer thermostat to be connected to WIFI and DEVIsmart™ App controllable from anywhere, at any time. The thermostat is primarily used for controlling electrical floor heating elements. The thermostat is designed for fixed installation only and due to the specially designed 2-part construction it fits a wide range of frames and sensors.
The DEVIreg™ Smart is fast and intuitive to set up using the App Wizard. It has an open window detector and energy-saving program including an optimum start/end control ensuring the desired temperature at the correct time and thereby reducing the heating costs.
Benefits:
- WIFI Connectivity
- Remote Controllable via DEVIsmart™ App
- A single DEVIreg™ Smart thermostat can be paired with up to 10 mobile devices using DEVIsmart™ App.
- Can communicate with two mobile devices simultaneously.
- With one DEVIsmart™ App, you can control as many locations with as many DEVIreg™ Smart thermostats as you need
- Adaptive PWM function
- Fits many foreign single and multiple frames.
- Fits many foreign competitive NTC sensors.
Standard compliance:
- EN/IEC 60730-1 (general)
- EN/IEC 60730-2-9 (thermostat)
- EN 300 328 (WIFI)
|
Operation voltage |
220 V- 240V~ 50/60 Hz |
|
Standby power consumption |
max. 0,40 W |
|
Relay: Resistive load Inductive load |
16A / 3680W @ 230V 1A (Cos Φ = 0,3) |
|
Sensing unit |
NTC 15 kΩ @ 25°C, 3 m. (default), NTC 6,8 kΩ @ 25°C, NTC 10 kΩ @ 25°C, NTC 12 kΩ @ 25°C, NTC 33 kΩ @ 25°C, NTC 47 kΩ @ 25°C |
|
Regulation |
PWM - Pulse Width Modulation |
|
Ambient temperature |
0°C to 30°C |
|
Frost protection |
5°C to 9°C (default 5°C) |
|
Temperature range |
5°C to 35°C (room) 5°C to 35°C (45°C with break out) (floor) |
|
Storage temperature |
-20°C to 65°C |
|
Cable specification max. |
1 x 4 mm2 |
|
Ball pressure test temperature |
75°C |
|
Pollution degree |
2 (domestic use) |
|
Controller type |
1 C |
|
Software class |
A |
|
Expected Wi-Fi data use |
125 kByte / 24h, 3,9 Mb / month |
|
IP class |
21 |
|
Protection class |
Class II - |
|
Dimensions (H/W/D) |
85 mm x 85 mm x 20-24 mm (in-wall depth: 22 mm) |
|
Weight |
127 g |
|
DEVIsmart™ App |
1 App can control up to 100 thermostats. 10 Apps can be connected to 1 thermostat. 2 Apps can control one thermostat at the same time |
