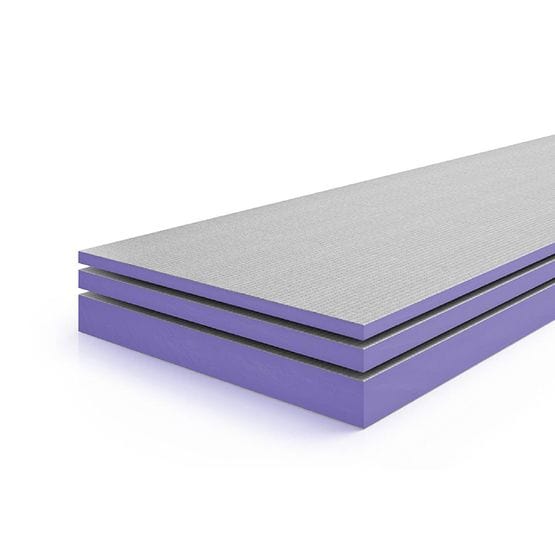

UFH Tile Backer Insulation Board

UFH Tile Backer Insulation Board

UFH Tile Backer Insulation Board

Made from water-repellent extruded polystyrene foam, this insulation board is easy to work with and can be cut to any dimension. Coated on both sides with a special finish, it can be fitted on nearly any substrate and is ready to be rendered, plastered or tiled.

Thanks to its excellent thermal insulation qualities, this construction board is perfect for use as effective thermal insulation. Ideal for interior construction and furnishings, it is especially suited in rooms subject to high levels of moisture such as bathrooms.

Features & Benefits:

• 1200mm length x 600mm width x various thickness's
• Made from extruded polystyrene foam with special layer on both sides
• Low weight of approximately 3-6kg/m²
• High compressive strength > 300kPa
• Perfect for rooms subject to high levels of moisture
• Easy to work with and cut
• Can be covered directly with render, plaster or tiles
• Excellent thermal insulation qualities with lambda value of 0.035W/(m·K)

Thanks to their extruded polystyrene core and the special coating on both sides, the UFH Tile Backer Insulation Board are the ideal substrate for all types of ceramic, porcelain, or natural stone tiles. They are water repellent, waterproof, thermally insulating, easy to shape, light and strong.
