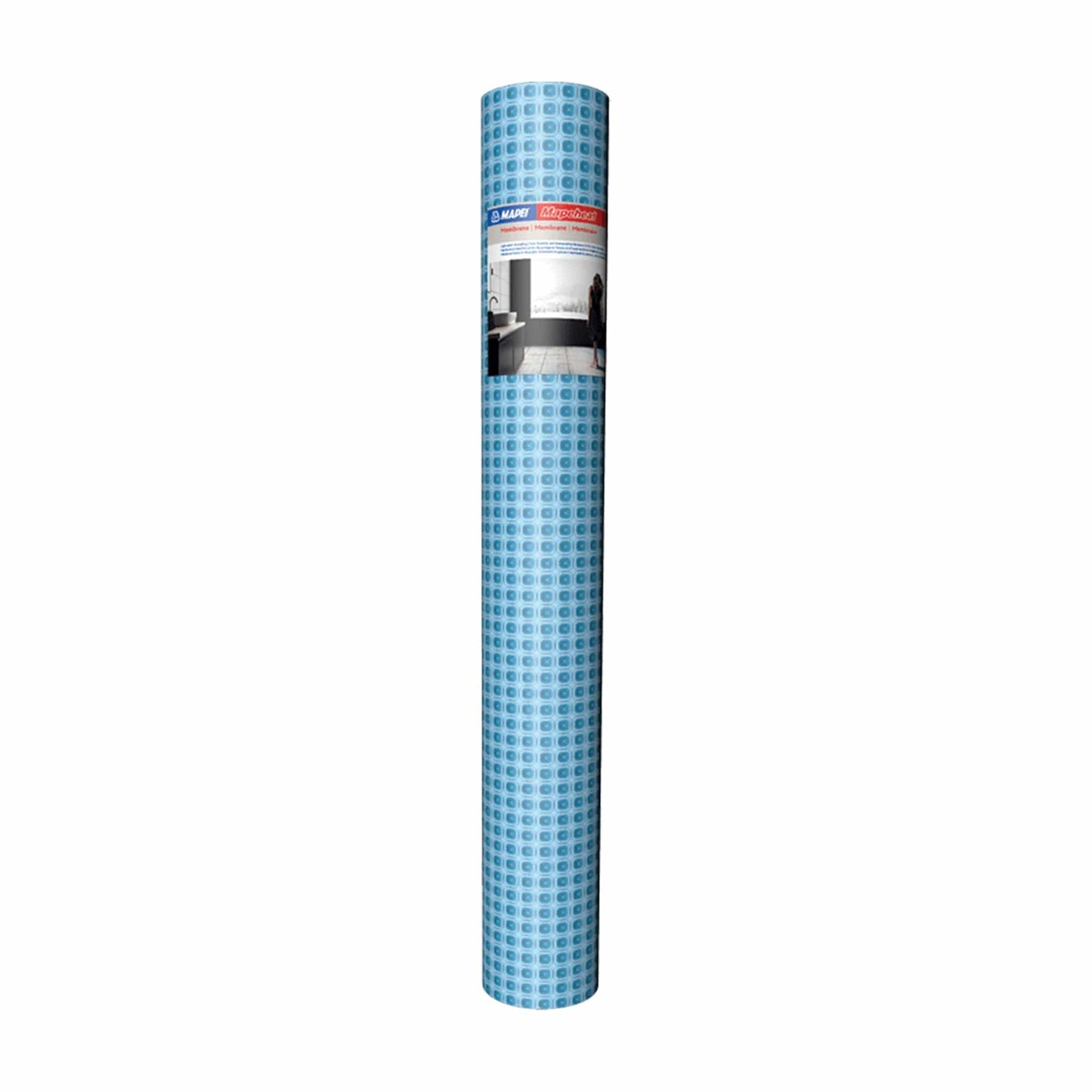

DESCRIPTION Mapeheat Membrane is a lightweight uncoupling, anti-fracture and waterproofing membrane for electrical underfloor heating. This patented membrane is designed to speed up the installation of tile and stone in interior rooms such as bathrooms, kitchens and living areas where the luxury of radiant floor heating is desired. Mapeheat Membrane’s thin profile works well with remodelling projects where the new floor will be installed directly over a pre-existing one. Once the heating cable is set within Mapeheat Membrane’s rounded square reliefs, a tile adhesive or levelling/ smoothing compound can be applied immediately.
WHERE TO USE • Use under ceramic, porcelain and natural stone tiles in interior residential spaces such as kitchens, bathrooms, shower floors and living areas. • Use as a substrate for self-levellers under engineered wood, luxury vinyl tiles, luxury vinyl planks, laminate flooring and mosaic tile.
Some application examples For the installation of Mapeheat Cable heating over: • Concrete cured for a minimum of 6 weeks. • Sand: cement screeds cured for a minimum of 7 days and capable of supporting tile installation traffic without leaving any indentations. • Tile adhesives and levelling/smoothing compounds • Tile backer boards – see manufacturer’s installation guidelines • Exterior grade plywood at a minimum thickness as outlined in the local standards • Existing, well-bonded ceramic tile and dimensionally stable natural stone • Existing, firmly bonded existing luxury vinyl tiles. • Existing, cement terrazzo floors
Consult MAPEI’s Technical Services Department for installation recommendations regarding substrates and conditions not listed.
TECHNICAL CHARACTERISTICS • Helps prevent transmission of in-plane substrate cracks up to 3 mm • Recommended for use with polymer-modified adhesives • Thin profile: Membrane thickness is less than 6mm • Minimal roll memory for faster installation • Heating cable installs easily, lays flat and secure • Suitable for areas with up to 25 lbs (11.3 kg) and 100% relative humidity • Inhibits mould growth
