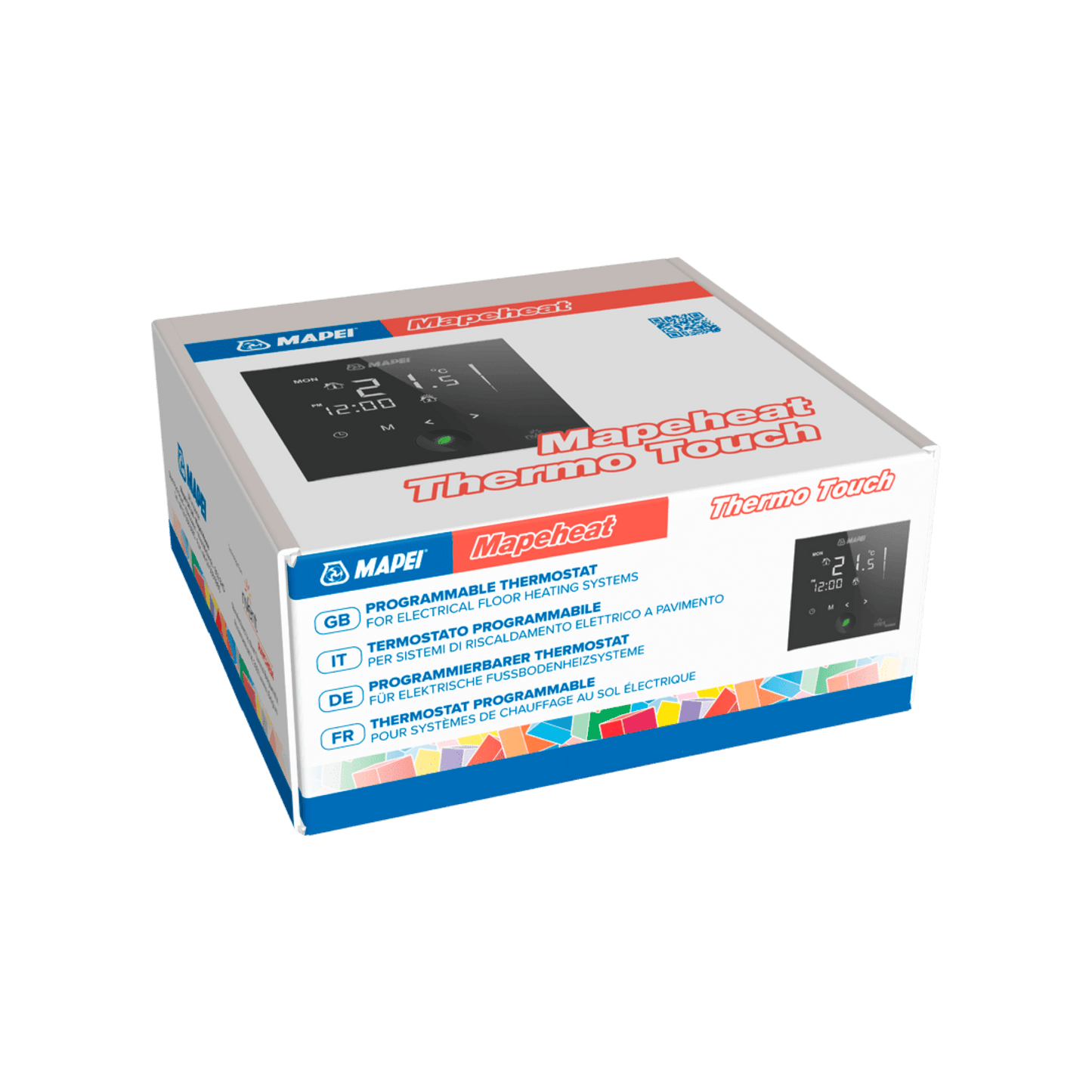

Mapei Mapeheat Thermo Touch Thermostat
Mapeheat Thermo Touch is an “in wall” mounted gloss finish programmable thermostat for the Mapeheat floor heating systems.
FEATURES AND BENEFITS
- Large clear display
- Intelligent leaf button:
- Changes operating modes
- Turns the thermostat ON/OFF
- Saves changes
- Energises the thermostat when in standby mode (motion sense technology)
- Built-in 4 event timer function
- 2 operation modes
- Manual on/off programme (1 temperature set-point)
- 1 editable pre-programme (4 temperature set-points per day)
- 3 Sensor modes:
- Room sensing only
- Floor sensing only
- Room sensing mode with floor temperature limiter
- Easy navigation
- Manufacturers limited 2 year warranty
TECHNICAL DATA
|
TECHNICAL DATA (typical values)
|
|
|
Supply voltage: |
230 VAC (+10% / -15%) – 50 Hz |
|
Relay output: |
230 VAC, maximum 13A resistive load (max. 3000W) |
|
Power consumption (Stand-by): |
3VA |
|
Ambient operating temperature: |
0°C to +40°C, 5% to 95% RH (non condensing) |
|
Switching hysteresis: |
1K (Factory settings adjustable between 0.5 - 2.0K) |
|
Terminals: |
Max. 2.5 mm² |
|
Protection class: |
IP 21 |
|
Sensor:
|
External floor sensor (range +5°C to +35°C) - With 3 meter cable (max. extension 100 m with 2 x 1.5 mm²) - Type NTC 10K at +25°C Internal room sensor (range +5°C to +40°C) |
|
Transport - Ambient temperature: |
–10°C to +60°C |
|
Approvals: |
CE, UKCA, RoHS, WEEE |
