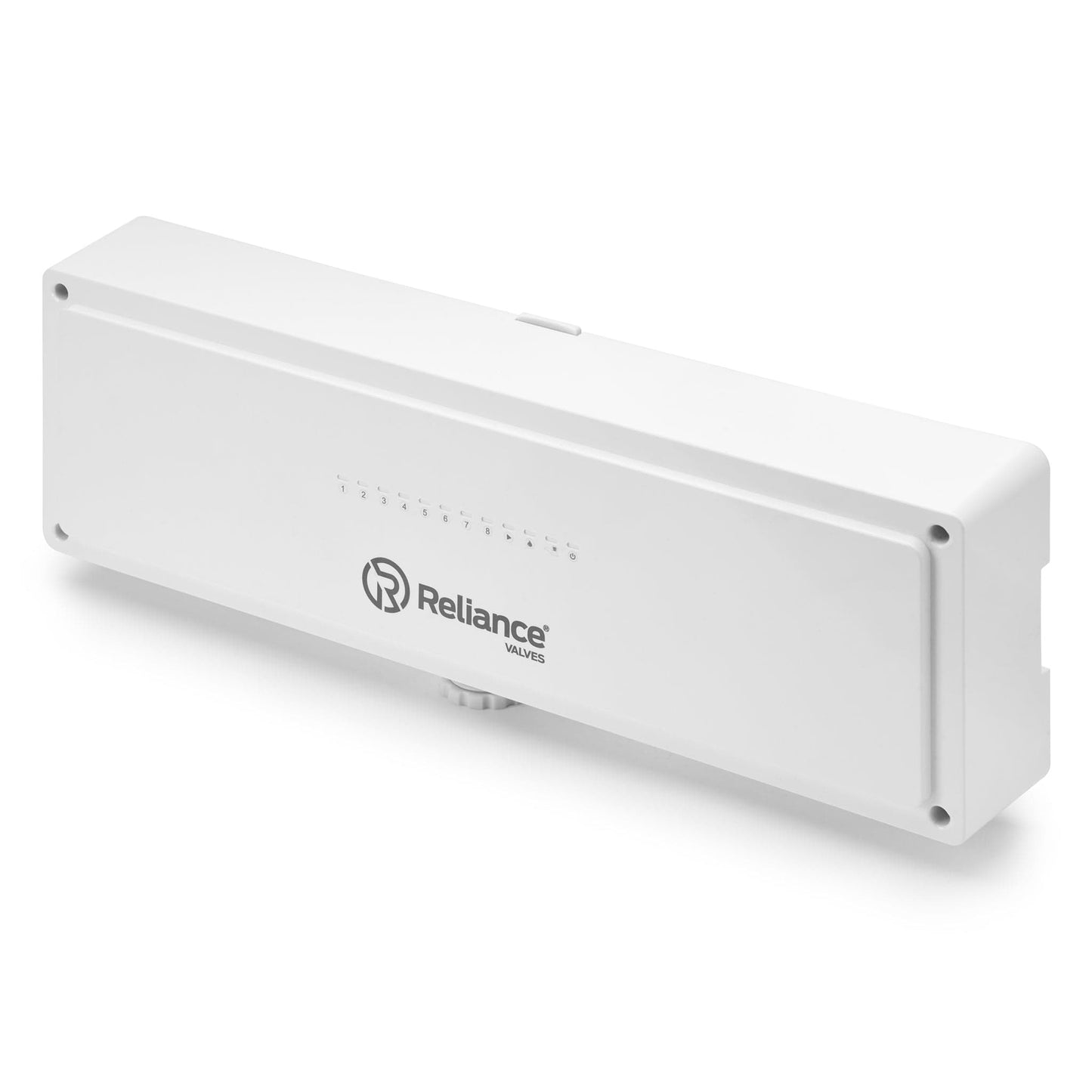

RWC 240V 8 Zone Wiring Centre | WIRE200001

RWC 240V 8 Zone Wiring Centre | WIRE200001

Designed to simplify and centralise all elements
of a central heating and hot water wiring system.
With remote RF connection to associated
RF thermostats

OVERVIEW

The Reliance Valves 240v Wiring Centre is an all in one junction box for
underfloor heating systems.
Featuring 8 zone connections, it’s easily mounted and with a fully labeled
circuit board, its easy to wire. The wiring centre is an essential component to
centralize underfloor heating wiring.
The wiring centre has hard wired connections for zone valves (for additional
radiators or hot water motorized valves), actuators, and pump and room
thermostats.
When used in conjunction with the Reliance Valves Thermostats, Gateway
and App, it offers remote access to your heating and your hot water - even
on the go,

FEATURES

• LED lights to show the power, thermostat, pump, boiler, and hot water
status so system conditions can be monitored at a glance.
• Twin connections for actuators for each thermostat zone up to a
maximum of 16
• Dip switches included for all 8 standard zones to stop the UFH pump
activating when using the Reliance Valves wiring centre on a system with a
mix of both radtiators and underfloor heating
• All functions fully accessible from the front of the unit with no additional
internal link wiring required.
• Connections for hot water and central heating zone valves.
