Uponor 9.9mm x 1.1mm Minitec Comfort Pipe 480m | 1063381
Uponor 9.9mm x 1.1mm Minitec Comfort Pipe 480m | 1063381
SKU:BM01680
£647.36
inc. vat
inc. vat
£539.47ex. vat
Couldn't load pickup availability
• 24–48 hr turnaround
• No obligation
Uponor 9.9mm x 1.1mm Minitec Comfort Pipe 480m | 1063381

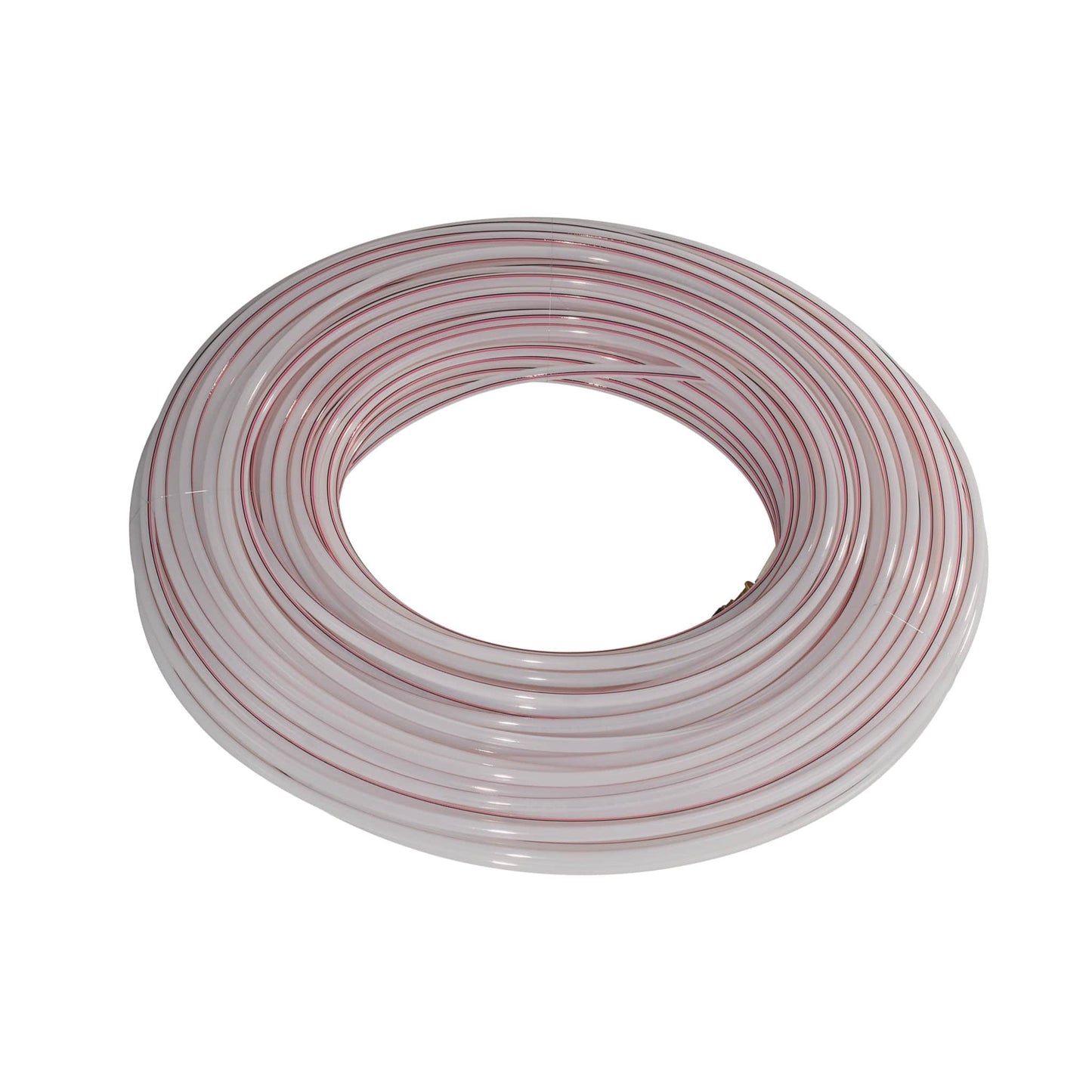

Uponor's Minitec Comfort Pipe is a PE-Xa pipe with an EVOH oxygen diffusion barrier, designed for underfloor heating and low-temperature radiator systems. It's manufactured to EN ISO 15875 using peroxide cross-linked polyethylene, giving the pipe the flexibility and durability needed for underfloor installations while the oxygen barrier protects the wider heating system from corrosion.
At 9.9mm diameter, this Minitec variant suits low-build underfloor heating systems where screed depth or floor height is limited. It's suitable for use with both cement- and anhydrite-based screeds.
Key specifications:
- Outer diameter: 9.9mm
- Wall thickness: 1.1mm
- Coil length: 480m
- Material: PE-Xa, cross-linked polyethylene
- Colour: Natural
- Application class: 4 (underfloor heating and low-temperature radiators)
- Design pressure: 6 bar at 70°C
- Maximum design temperature: 90°C
- Short-term malfunction temperature: up to 100°C
- Oxygen barrier: EVOH, to DIN 4726
- Fire classification: Class E (EN 13501-1)
- Standard: EN ISO 15875
This pipe is also available in 60m, 240m and 480m coils to suit different project sizes.
Technical data
| Item Quantity | 480 |
| Item (unit of measurement) | m |
| Outside diameter | 9.9 mm |
| Length in meter | 480 m |
| Colour | Natural |
| Pressure | 6 bar |
| Outer Diameter | 9.9 mm |
| Wall thickness | 1.1 mm |
