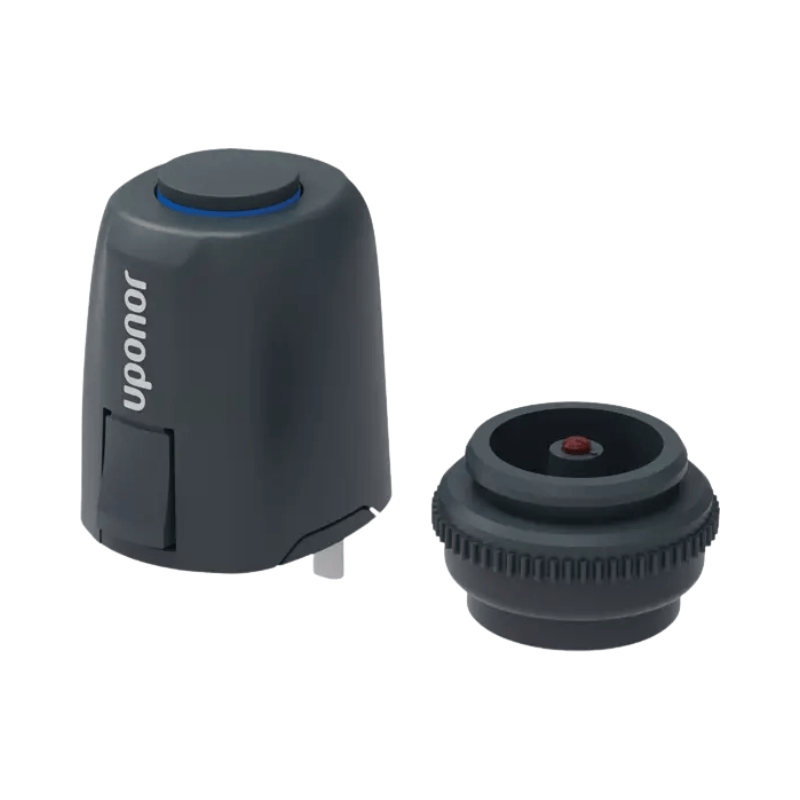

Uponor Vario Plus Actuator NC MT 230V 1W IP54 - 230V | 1141678

Uponor Vario Plus Actuator NC MT 230V 1W IP54 - 230V | 1141678

Optimise the control and efficiency of your underfloor heating and cooling systems with the Uponor Vario PLUS Actuator NC MT 230V 1W IP54. This Vario PLUS/MAGNA manifold actuator features an innovative first-open function for easy commissioning and delivers precise valve control with a compact design and reliable performance.

Key Features

• Model Number: 1141678
• Type: Vario PLUS, MAGNA manifold actuator
• Operation: NC (Normally Closed) – valve closes without power
• Voltage & Power: 230V, 1W
• First-Open Function: Simplifies system filling and commissioning
• Stroke Length: 5 mm for accurate valve movement
• Height: 61 mm + adaptor ring for a compact installation
• Connection Cable: 2 x 0.75 mm² x 1 m for straightforward wiring
• Protection Rating: IP54 – resistant to dust and splashing water
• Certification: CE marked

Applications

Designed primarily for underfloor heating and cooling systems, this actuator is ideal for both residential and commercial projects where dependable, consistent zone control is essential. It is suitable for use on Vario PLUS/MAGNA manifolds and is compatible with actuator interfaces MT 30 x 1.5.

Technical Overview

• Actuator type: Vario PLUS manifold actuator
• Manifold compatibility: Vario PLUS/MAGNA manifolds
• Actuator thread: MT 30 x 1.5 compatible
• Function: Normally closed (NC) – failsafe closed without power
• Stroke: 5 mm
• Installation height: 61 mm + adaptor ring
• Cable length: 1 m, 2 x 0.75 mm²
• Enclosure rating: IP54
• Rated voltage: 230V
• Power consumption: 1W (approx.)
• Certification: CE

Upgrade or expand your underfloor heating and cooling system with the reliable Uponor Vario PLUS Actuator NC MT 230V | 1141678, offering precise control, durable construction, and straightforward integration with your Uponor manifold setup.
