Whisper Controls Essence 8 Way Wiring Centre | KF600

Whisper Controls Essence 8 Way Wiring Centre | KF600

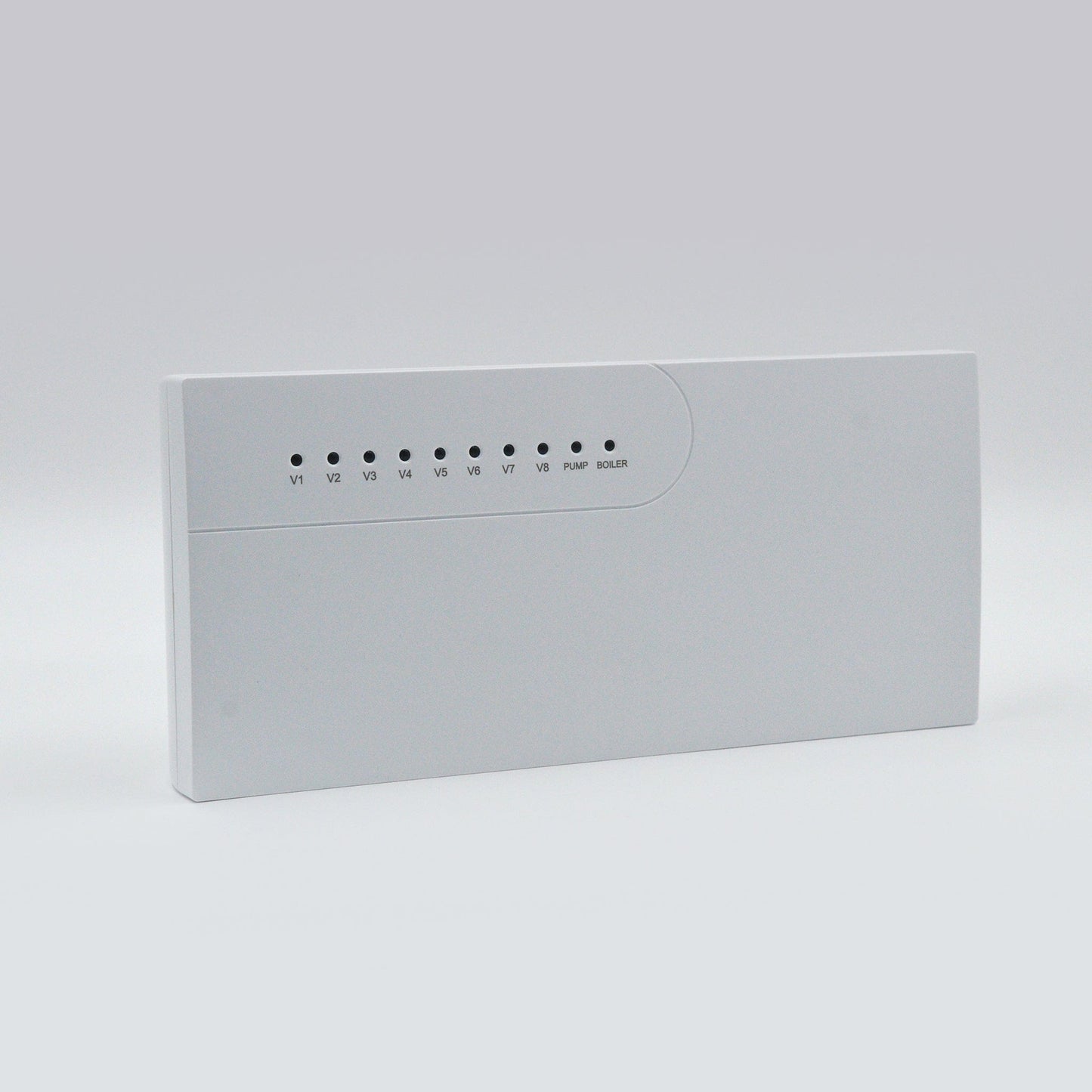

The KF-600 is an 8 way wiring centre for radiant underfloor heating systems with a 230v power supply.
The KF-600 can be used to control up to 8 underfloor heating zones with 230v thermostat zone control.

• Gold LED pump indicator light when secondary UFH circulator pump is running.
• Blue LED boiler indicator light when UFH system signals energy source for heat.
• Red LED zone indicator lights when circuit is open to allow flow to UFH zone.
• Adjustable pump delay to alleviate stress on secondary UFH circulator pump.
• Adjustable boiler delay to alleviate stress on external energy source when system calls for heat.
• Up to 2 thermal actuators per zone per allowing up to 16 UFH circuits in total. Multiple circuits can be controlled by a single zone control thermostat, up to 8 in total.
• Bespoke load protection fuse as standard for additional protection.
• Easy cable access through removable access tabs and spacious terminals for ease of install.
• Earth protection terminals are built in making earthing wiring simple.
• Dedicated pump live and neutral terminal block makes pump connection straightforward.
