Tekwarm

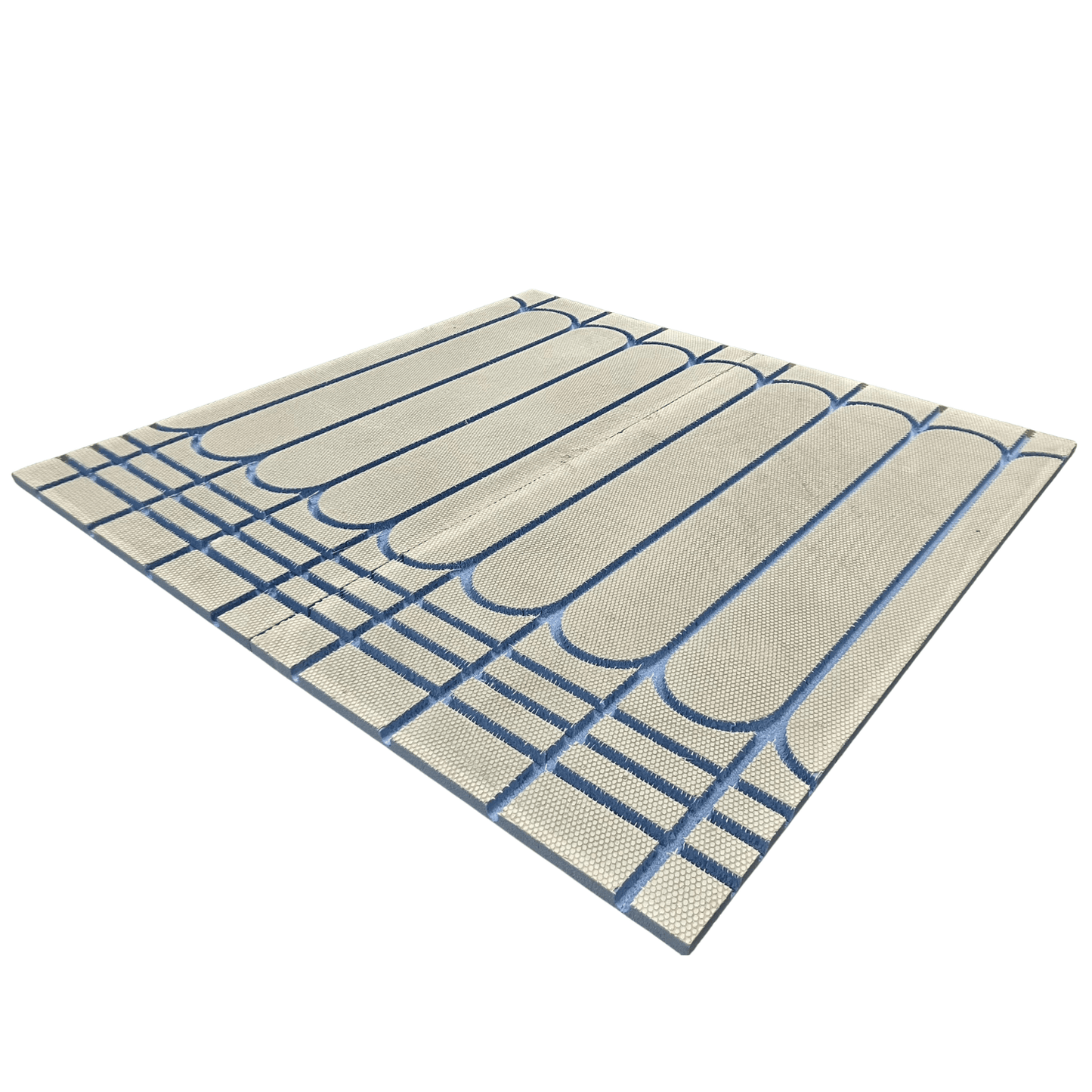

20mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 200mm Centres for 16mm Pipe
20mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 200mm Centres for 16mm Pipe
SKU:BM006853
✔ Grooved for 16mm underfloor heating pipe
✔ Pre-grooved 200mm pipe centres
✔ Can be used with timber & concrete
£14.96
inc. vat
£12.47
ex. vat
inc. vat
£12.47ex. vat
Couldn't load pickup availability
Save 5% off selected Tekwarm products!
*min spend £500.00 ex.vat. Applied at checkout. Cannot be used with any other offers/discounts
• 24–48 hr turnaround
• No obligation
20mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 200mm Centres for 16mm Pipe
Overview
The 20mm Tekwarm Lite Low Profile UFH Board with 200mm centre spacing is ideal for larger spaces requiring higher heat output. With a thickness of just 20mm, these boards provide 300 kPa compressive strength for durability and heat retention. The boards are grooved to accommodate 16mm diameter heating pipes, offering a quick and efficient installation on timber and concrete sub-floors. This product is suitable for both new builds and retrofit projects.
Key Features:
- Thickness: 20mm, perfect for low-profile installations.
- Grooved for 16mm pipes: Ensures quick and easy installation with radius returns for seamless pipe placement.
- Compressive strength: 300 kPa XPS insulation for durability and efficiency.
- Pipe spacing: 200mm, ideal for larger areas requiring more heat output.
- Compatible with timber and concrete: Easy installation using adhesive or mechanical fixings (depending on the sub-floor).
Key Benefits:
- Efficient: Perfect for larger areas where consistent heat is needed.
- Low profile: Ideal for installations where floor height is a concern.
- Energy efficient: Offers efficient heating with the right insulation and heat retention balance.
Alternative Products:
Looking for a different configuration? Check out the following options:
- 20mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 150mm Centre for 12mm Pipe
- 20mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 150mm Centre for 16mm Pipe
- 20mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 200mm Centre for 12mm Pipe
Product Data Sheet:
Tekwarm Lite Low Profile UFH Board Data Sheet
Recommended Overlay Board:
Quick Technical Overview
- Board size 1200 × 600 × 20 mm
- Pipe compatibility 16 mm @ 200 mm centres
- System type Low profile insulated UFH board
- Low profile system Yes
Technical Specifications
Dimensions
| SKU | BM006853 |
|---|---|
| Brand | Tekwarm |
| Range | Lite Low Profile UFH Board |
| Length | 1200 mm |
| Width | 600 mm |
| Thickness | 20 mm |
UFH compatibility
| Pipe diameter | 16 mm |
|---|---|
| Pipe centres | 200 mm |
| Low profile system | Yes |
| Groove pattern | Pre-routed Linear routed channels with radius return grooves |
Coverage & packs
| Coverage per board | 0.72 m² |
|---|
Material & performance
| Core material | Extruded Polystyrene (XPS) |
|---|---|
| Surface / facing type | Cement-coated both faces |
| Compressive strength | 300.0 kPa |
Data Sheet
| Tekwarm Lite Low Profile UFH Board |
